COLOSSAL 10K 5/8 WAVE HEAVY DUTY GROUNDPLANE ANTENNA

Description

This product has a 3 week lead time till shipping $541 shipped

COLOSSAL 10K 5/8 WAVE GROUNDPLANE ANTENNA

The Colossal 10K 5/8th wave ground plane was designed for high power operators who want maximum performance from their station. The Colossal has exceptionally quiet receive with superior transmit power over other designs, hi Q parallel tuned matching network assures maximum power transfer without feedline radiation.  The Colossal 10K will handle a full 10kw pep when direct fed. Am Carrier power of up to 2.5KW can be used with this antenna when direct fed. Heavy duty T-832 seamless aircraft aluminum construction assures high wind handling in the toughest environments. Mounting heights between 30 to 60 to the base achieve best performance for local and DX contacts.  This is a live tech support item, call for assembly or tuning instructions.
This product has a 24 day lead time till shipping
Gain—5.14DBI
This is a true 5/8 Wave
BANDWIDTH — 600KHZ.
WEIGHT — 18LBS
VERTICAL ELEMENT LENGTH — 21.5 Feet.
OVERALL HEIGHT — 22.5 Feet.
Has 4 spoke capacitance hat on the top to reduce end effect.
WIND RATING — 92MPH
MAST SIZE — Up to 1 5/8 inch OD

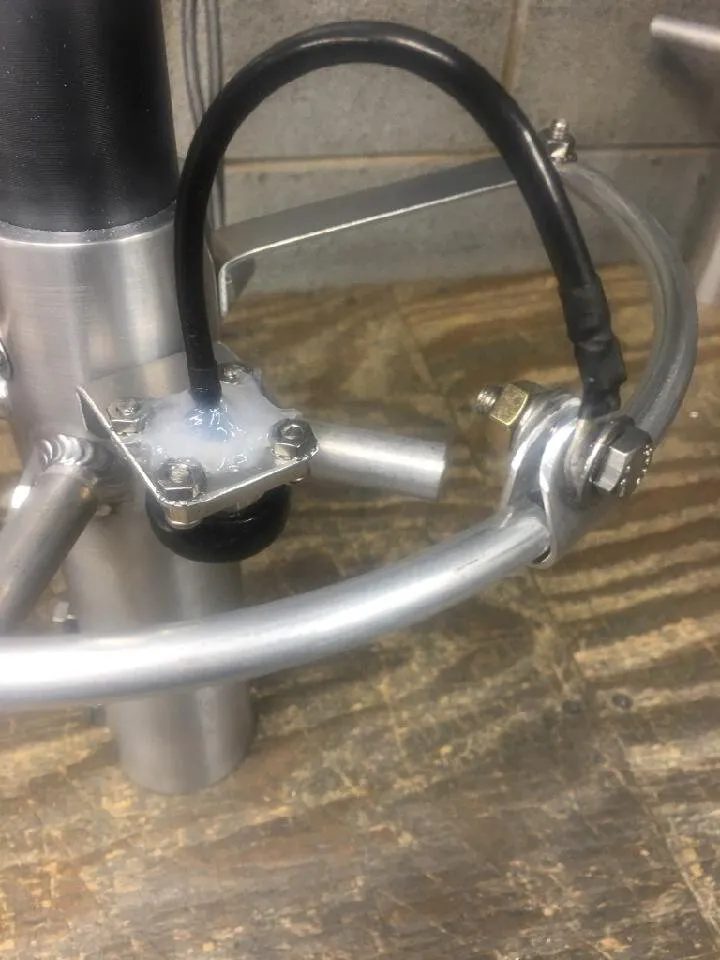

MATCHING — Parallel tuned network.

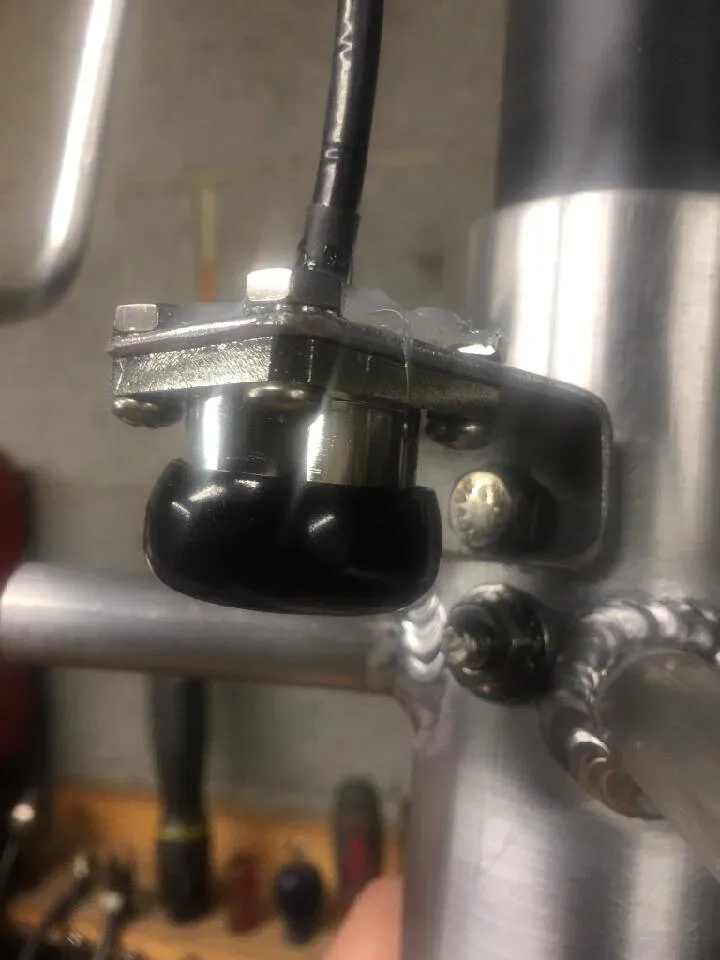

This antenna ships standard with a S0-239 connector installed.
